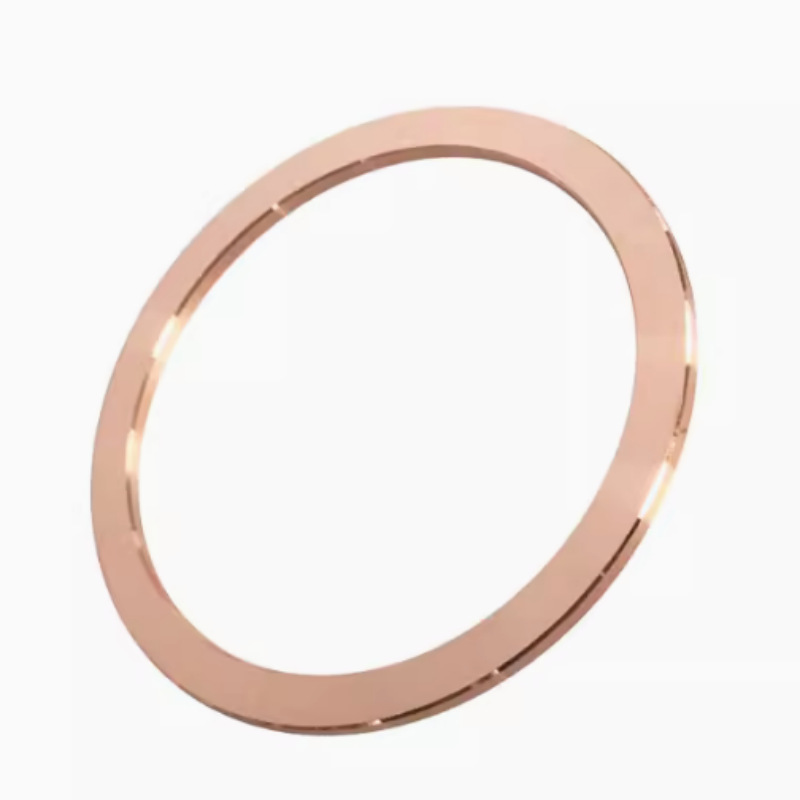

Vacuum Copper Gaskets
Our vacuum copper gaskets are engineered for ultra-high vacuum (UHV) and high-vacuum (HV) sealing applications, providing leak-tight, all-metal seals in conjunction with CF (ConFlat) flange systems. They are essential for vacuum integrity in research, semiconductor, and analytical instrumentation environments.
Key Features
- Material: Oxygen-Free High Conductivity (OFHC) copper for low outgassing and exceptional vacuum performance.
- High Sealing Integrity: Provides metal-to-metal seals down to 10⁻¹² mbar when properly mated with CF flanges.

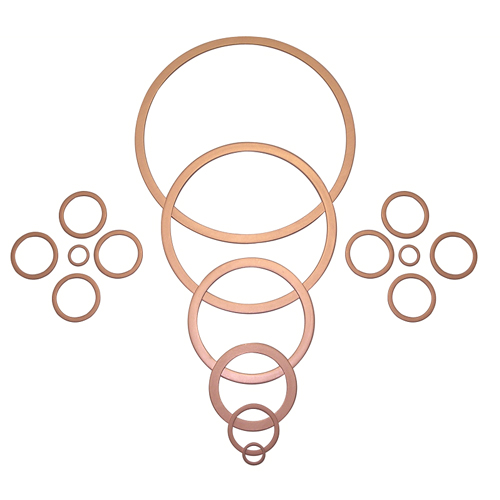

- Standard Sizes: Available for all CF flange sizes including CF16, CF40, CF63, CF100, CF160, and CF200.
- Surface Finish: Precision-machined and deburred sealing surfaces ensure consistent compression and minimal leak rates.
- Single-Use Design: Deforms under bolt load to form an irreversible vacuum seal—ideal for static UHV applications.
Material Options
- OFHC Copper (C10100/C10200): Standard option for ultra-clean and cryogenic environments.
- Silver-Plated Copper: Optional coating improves demountability and reduces risk of flange galling.
- Annealed Copper: For softer sealing where lower torque is needed or uneven surfaces are present.
Applications
Used in vacuum chambers, beamlines, synchrotrons, UHV test setups, and other environments requiring leak-tight, metal-only seals. Especially suitable for systems where elastomer seals are not permitted due to temperature or outgassing concerns.
How to Order
To request a quote, please provide the following:
- Gasket size (e.g., CF40, CF63)
- Material type (OFHC, annealed, silver-plated, etc.)
- Quantity required
- Application environment (optional – helps us recommend the best option)

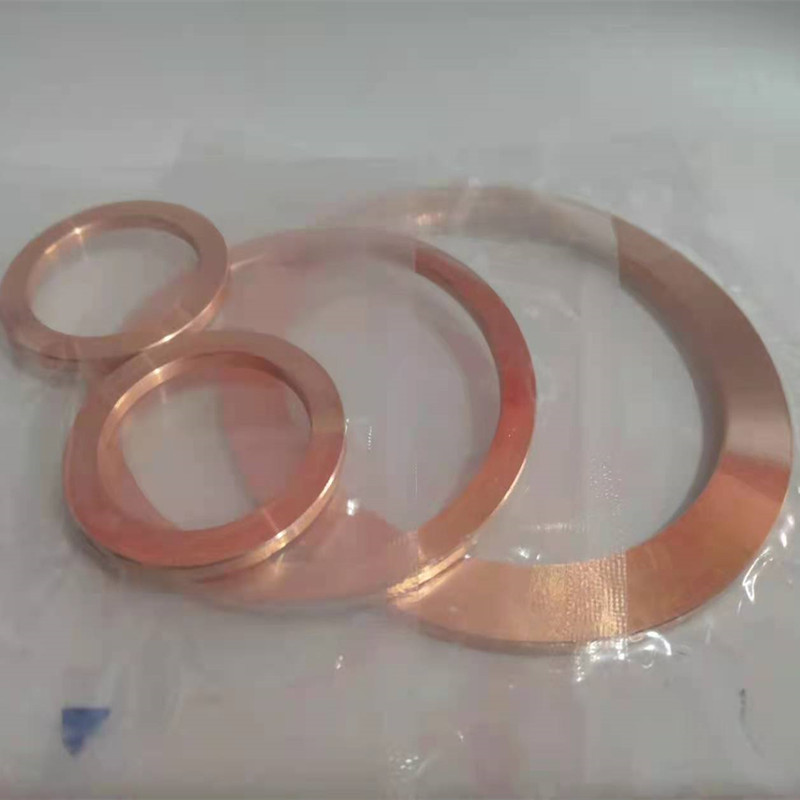

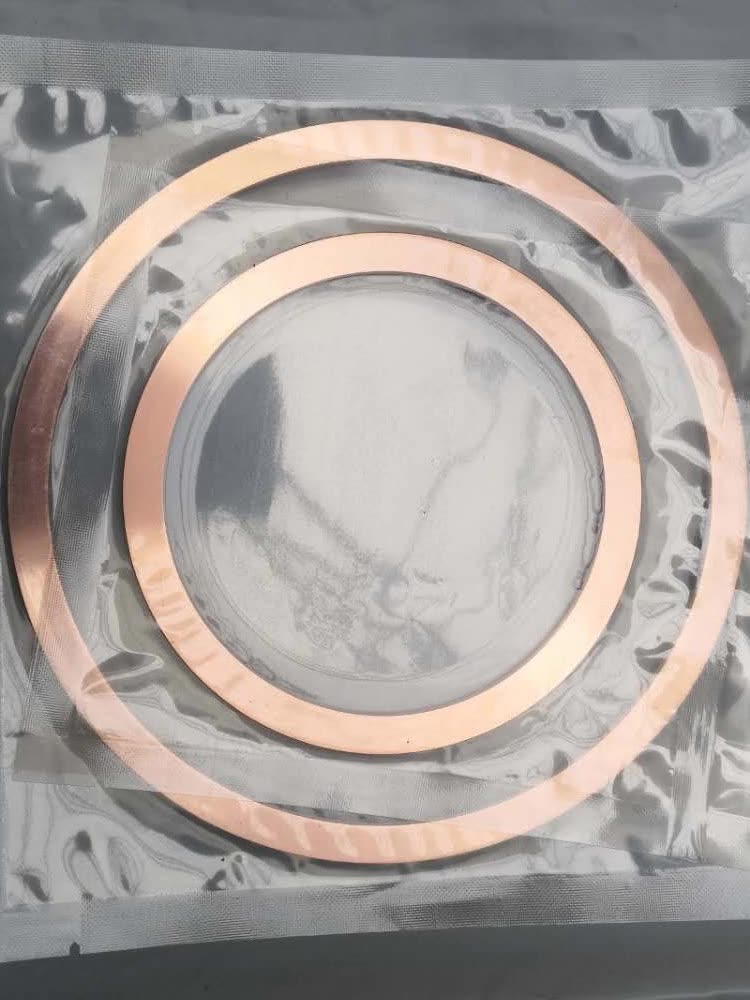

We will respond with pricing, availability, and technical specifications. All gaskets are vacuum-clean packaged and ready for immediate use.
