What Are Edge Welded Bellows?

Edge welded bellows are precision metal diaphragms manufactured by welding thin metallic discs alternately at their inner and outer diameters to form a flexible, leak-tight convolution structure. Unlike hydroformed bellows, edge welded bellows deliver superior stroke length, higher cycle life, and tighter spring rate control — making them the preferred choice for demanding high-vacuum (HV) and ultra-high-vacuum (UHV) applications.

At Alpha Technology, we produce custom edge welded bellows in materials including SS316L, AM350, and Inconel, with OD ranges from 6mm to 200mm+, serving semiconductor, aerospace, medical, and scientific research industries worldwide.

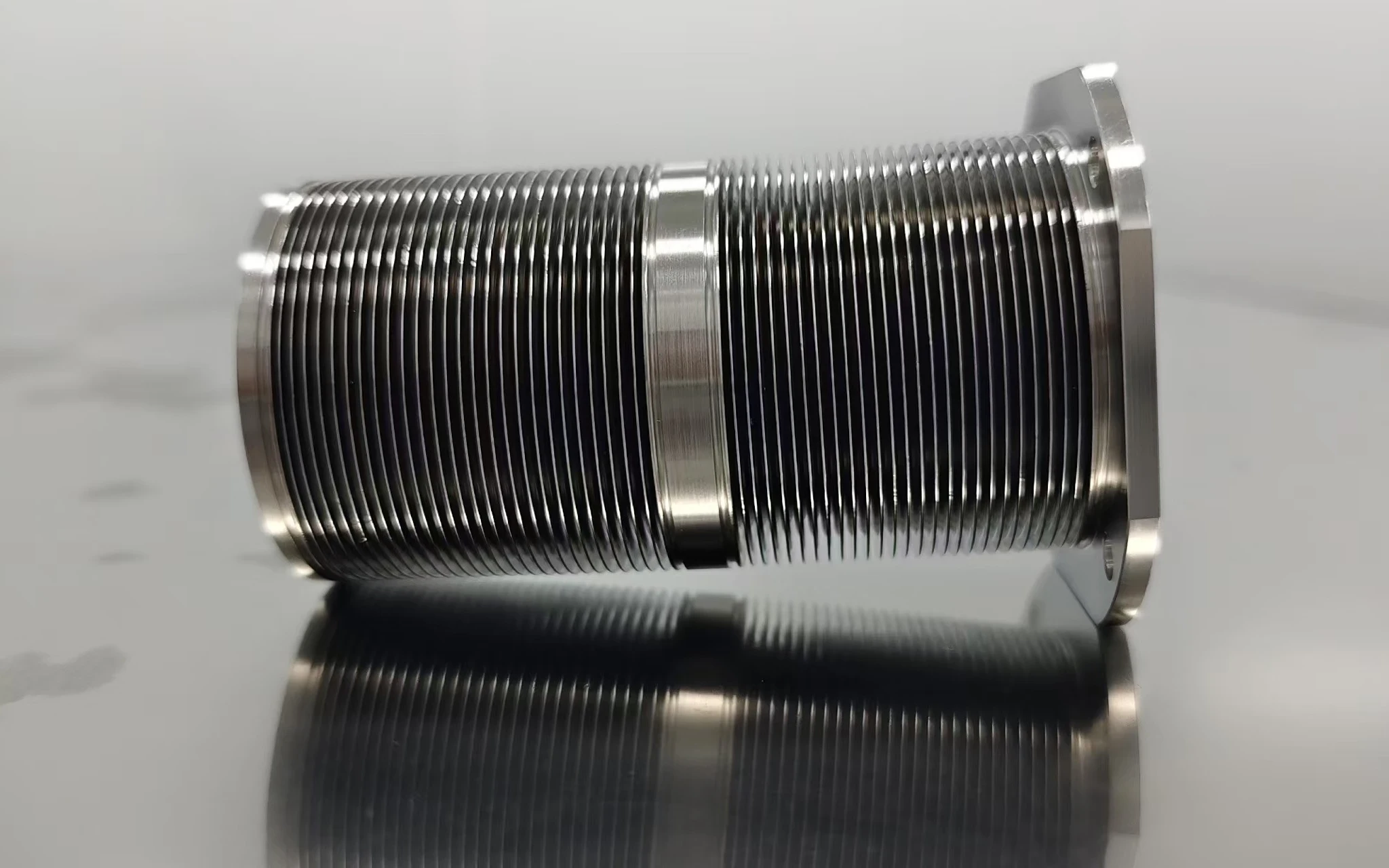

Edge welded bellows with square flange - precision metal diaphragms from Alpha Technology

Technical Resources

📐 Specification Catalog

Complete AT-Series model database with OD/ID dimensions, wall thickness,
and spring rates. Find the exact bellows for your design envelope.

View Specs →

🔬 Material Selection

Detailed comparison of SS316L, AM350, and Inconel: corrosion resistance,
temperature range, magnetic properties, and cost.

Compare Materials →

⚙️ Design & Selection Guide

How to calculate spring rate, determine stroke length, select convolution
geometry, and specify end fittings.

Design Guide →

🏭 Manufacturing Process

From diaphragm stamping to precision micro-plasma welding and helium leak
testing — see how we build bellows that last millions of cycles.

See the
Process →

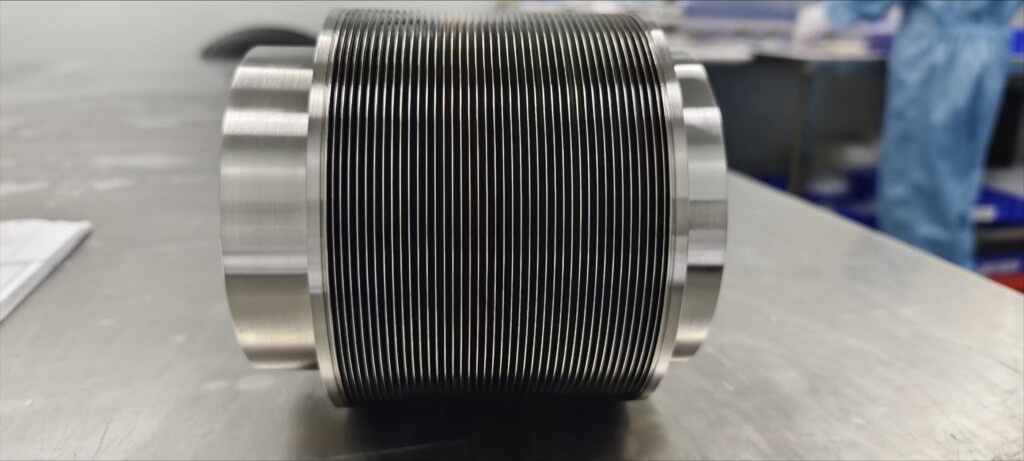

Edge welded bellows manufacturing process - precision micro-plasma welding

Parameter Edge Welded Hydroformed
Stroke Capability ✅ Up to 60% of
free length		 ~15-20% of free length
Cycle Life ✅ 1M+ cycles
typical		 50K-100K cycles typical
Spring Rate Precision ✅ ±5% ±15-20%
Wall Thickness 0.05mm – 0.5mm 0.08mm – 0.3mm
Vacuum Compatibility ✅ UHV (10⁻¹⁰
Torr)		 HV (10⁻⁶ Torr)
Cost Efficiency Higher for low volumes Better for high
volumes

Edge welded bellows diaphragm stack - thin metallic discs welded alternately
