On August 6, 2026, TAE Technologies announced that its first commercial-scale fusion power plant, Da Vinci, had completed its key designs and was moving “from blueprint towards build.” TAE’s approach — a beam-driven field-reversed configuration (FRC) that fuses hydrogen-boron (p-B11) fuel — is among the most commercially advanced fusion programs in the world, and Da Vinci is targeting grid operation in the 2030s.
Fusion plants are routinely described in the language of plasma physics. But a working reactor is, above all, a machine: a machine that must hold a 100-million-degree plasma in place, breed and handle fuel, produce heat, and run for years without stopping. Every one of those functions depends on vacuum systems that are far larger and more demanding than anything built to date.
The Vacuum Architecture of a Commercial Fusion Plant
1. The main plasma chamber

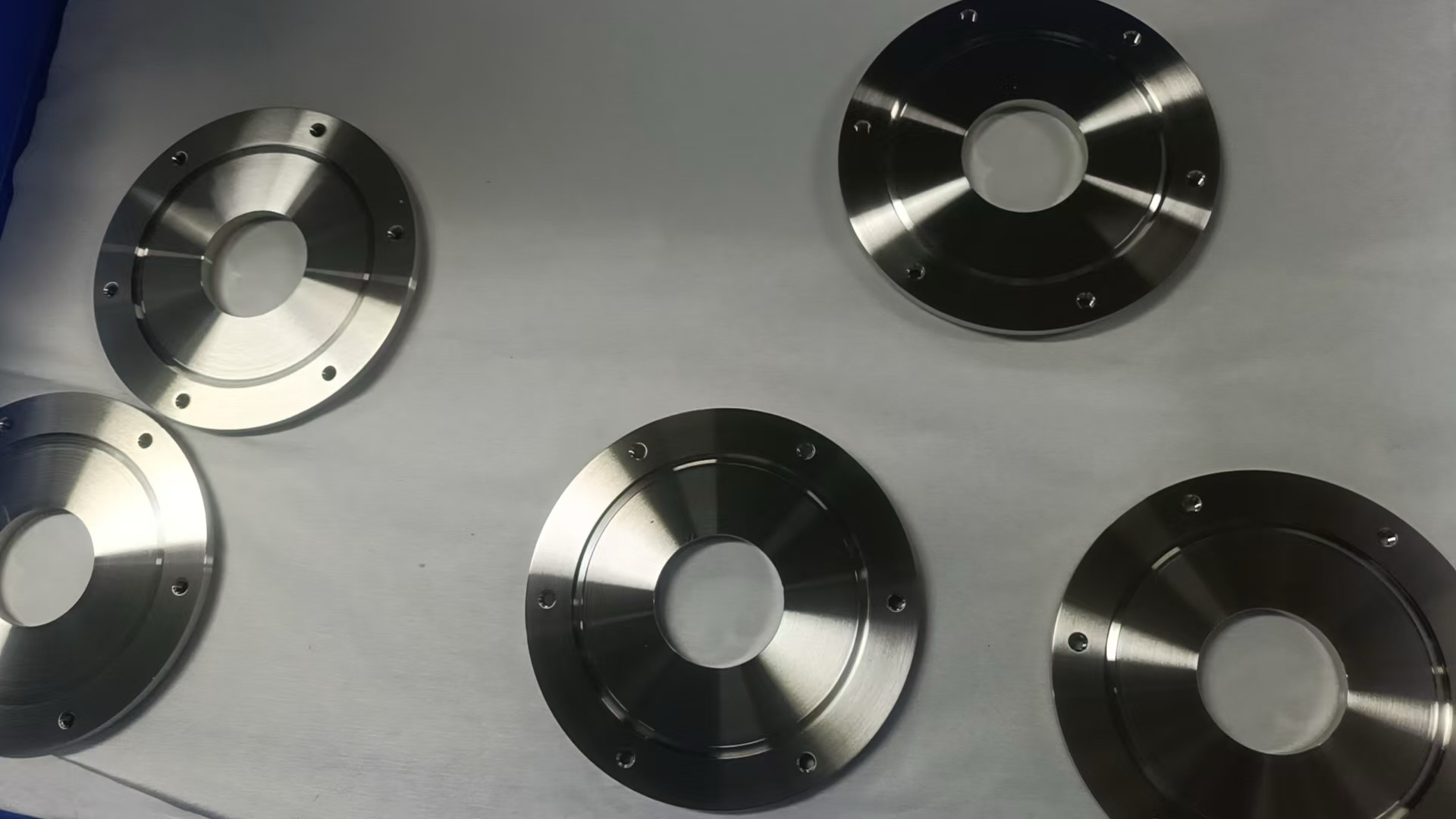

The reactor vessel itself is a vacuum chamber — for p-B11 fusion, the chamber wall and first-wall materials must survive intense radiation while maintaining vacuum integrity for years. Chamber sections connect through large-diameter flanges, and every connection is a potential leak path at 10-6 mbar or below. ITER’s vessel installation, covered in our article on the ITER vacuum vessel assembly, shows the scale: meters-wide sections, welded and leak tested in situ.
2. Beamlines and neutral beam injection
TAE’s FRC is sustained by neutral beams — powerful particle beams injected into the plasma. Beamlines are essentially linear vacuum systems: accelerating columns, neutralizer cells, bending magnets and dumps, all operating in high vacuum. The hardware in a beamline — vacuum feedthroughs for high voltage and diagnostics, bellows for alignment and thermal expansion — is exactly the technology Alpha Technology supplies to accelerator and fusion programs.
3. Fuel and ash handling
p-B11 fuel is not radioactive fuel bred in blankets — but the plant still needs a gas handling system for fuel delivery and for pumping helium ash and impurities from the chamber. Gas lines, valves and pumps must be helium-leak-tight to extreme standards; a leak in the fuel loop is a safety event, not a maintenance nuisance.
4. Cryogenic pumping
Fusion-grade vacuum at this scale is achieved with cryopumps — cold panels that freeze residual gas out of the chamber. Cryopumps live at 20 K and below, which means the pump stack, isolation valves and any flexible connections must tolerate extreme thermal cycling. Our guide to edge welded bellows in cryogenic service explains the 4K-to-300K engineering that keeps these systems alive.
5. The pump stack and gas inventory
A commercial plant moves far more gas than a research device. The pump stack — turbomolecular pumps, cryopumps and backing pumps — must handle continuous plasma operation while keeping chamber pressure stable. Between the chamber and the pumps, isolation and throttle valves manage the gas flow, and every valve body and bellows is a component that must be qualified for years of service. In fusion-class systems, the pump stack is sized like a small industrial plant, and the edge welded bellows in its valves and expansion joints are the unsung reliability points.
What “Commercial” Changes for Vacuum Hardware
Research tokamaks can tolerate downtime; a power plant cannot. Commercial fusion shifts vacuum hardware requirements in four ways:
- Cycle life measured in years of continuous operation: bellows and valves must be rated for hundreds of thousands of cycles, not hundreds.
- Remote maintenance: components are handled by robots in a radiation environment; quick-connect, self-aligning designs matter.
- Cost per component: research builds one of everything; commercial builds hundreds. Manufacturability and repeatability become specifications.
- Documentation and traceability: a utility-scale plant needs the same material certifications and test records as a nuclear plant — full traceability on every part.
Alpha Technology for Commercial Fusion
Alpha Technology supplies custom edge welded bellows, vacuum feedthroughs and formed bellows to fusion and accelerator facilities — built from 316L, AM350, Inconel and titanium, 100% helium leak tested with serialized reports, and documented for nuclear-grade traceability. The material guide helps you select alloys for high-temperature, radiation-exposed service; the design guide covers the envelope, stroke and fatigue calculations for plant-scale hardware. Contact our engineering team to discuss your reactor’s vacuum requirements.
FAQ
What is TAE Technologies’ Da Vinci plant?
Da Vinci is TAE’s first commercial-scale fusion power plant design, based on beam-driven field-reversed configuration (FRC) with hydrogen-boron fuel; key designs were completed in August 2026.
Why is vacuum so important in a fusion power plant?
The plasma chamber, beamlines and fuel systems all operate at high vacuum; vacuum integrity defines plasma purity, component lifetime and plant availability.
What vacuum level does a fusion reactor need?
Chamber pressures of 10-6 to 10-8 mbar are typical, with UHV-class components on diagnostics and beamlines.
Can the same vacuum components serve research and commercial fusion?
Yes, with different emphasis: commercial programs prioritize cycle life, manufacturability at volume, remote maintenance and full traceability — exactly what Alpha Technology documents on every shipment.
